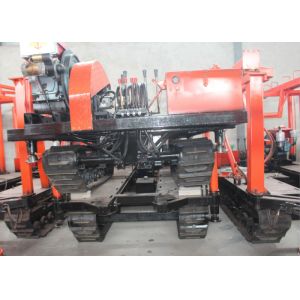

XY-3 Electric Power Type For Water Well / Railways Crawler Mounted Drill Rig

Brief Introduction

1, It can better meet the requirements of diamond wire line coring, percussive rotary drilling, directional drilling, Reverse Circulation Continuous Coring (sample) and other drilling technologies to improve working efficiency.

(1) drilling rig has a wide range of vertical shaft speed and a large number of speeds. There are nine forward gears and two reverse gears at 33-1002 / min.

It is beneficial to the selection of rotary speed for various drilling methods.

(2) It is equipped with a reverse torque device to stop the rotation of drill pipe (vertical shaft), which is very convenient for directional drilling.

(3) It can monitor and alarm the torque, WOB and other parameters. (configured according to user requirements)

XY 3 Crawler Mounted Drill Rig Parameter

Features of XY-3

1. Adopting CG140 model auto transmission, has 10 rotation speeds and reasonable speed range, with eight forward rotation gears and two reverse rotation gears, high speed, strong stroke and wide application.
2. Large engine power and two reverse rotation gears, can easily solve the drilling work accident.
3. The operation handles fixed in reasonable layout to make it more convenient for workers to operate the machine.
4. Equipped with normally closed hydraulic chuck, operation flexible and reliable
5. Spindle and hoist can be operated separately.
6. Spindle has big inner diameter, able to use big hexagonal drilling rod.

Jinzhou City Shitan Machinery Equipment CO. LTD. is a professional production and

processing company for core drilling rigs, crawler drilling rigs, various track chassis, various

types of mud pumps, various track transport vehicles, etc. It is one of the outstanding

manufacturers of similar products in North China. Strong technical force. The modern production

equipment and complete testing means are specialized in the development, manufacture and

marketing of drilling rigs.

To ensure the quality and stability of the machine, we use the most advanced production and testing

equipment, Made from high quality materials, with fashion and compact design, that keeps our drilling

rigs more efficiency and with low failure rate, more economic and durable, and with a high comprehensive

cost performance. Our water drilling rigs have received the real market validation as the majority of our

customer’s positive feedback.

The company's main products are rigs: XY-1, XY-1A, XY-1B, GK-180, GK-200, DPP-100 and other series

of drilling rigs: gearbox assemblies and gyro assemblies for various rigs, Winch assembly, reducer assembly,

pump assembly. Drilling tools: sedimentary pipe joints, casing joints, casing couplings, drill pipe joints, casing

core pipes, lifters, automatic drop hammers, earth borrowers, standard penetrations, forks, lock joints, alloy drill

bits Hundreds of drilling tools, such as steel sand drill bits, core pipe joints, drill pipe pliers, and casing pliers.

Jinzhou City Shitan Machinery Equipment CO. LTD. has a complete and scientific quality management

system. The integrity, strength and product quality of Jinzhou Stone Exploration Machinery Co., Ltd. have been

recognized by the industry. Welcome friends from all walks of life come to visit, guide and negotiate business!
