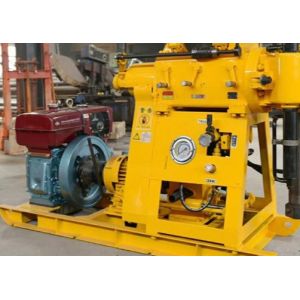

Customized Xy-1 Rotary Drilling Rig Machine Geological 127mm Hole Diameter

Product Categories

Water Well Drilling Rig Machine [131]
Geological Drilling Rig [132]
Soil Testing Drilling Rig [119]
Pneumatic Borewell Machine [173]
Borehole Drilling Machine [128]
Crawler Mounted Drill Rig [123]
Hydraulic Borewell Machine [94]
Portable Water Well Drilling Rig [103]
Trailer Mounted Drilling Rigs [70]
Drilling Rig Mud Pump [81]
Crawler Track Undercarriage [51]
Water Well Drill Bits [60]
Water Well Drill Pipe [23]
Drilling Rig Components [30]
Borewell Drilling Machine Air Compressor [11]
Track Transporter [44]

Jinzhou City Shitan Machinery Equipment CO. LTD.

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

Customized Xy-1 Rotary Drilling Rig Machine Geological 127mm Hole Diameter

Ask Lasest Price
Brand Name :	ShiTan
Model Number :	Shitan Machinery Drilling Rig Equipment,Customized XY-1 Exploration Geological Drilling Rig
Certification :	ISO9001
Price :	Negotiation
Payment Terms :	T/T, Western Union
Delivery Time :	Within 7-12 days
Supply Ability :	1000 sets per month

Add to Cart

Product Details
Company Profile

Customized Xy-1 Rotary Drilling Rig Machine Geological 127mm Hole Diameter

Customized XY-1 Exploration Geological Drilling Rig

Product Description

Customized XY-1 Exploration Geological Drilling Rig is a new type hydraulic pressure technology, and match a complete set of hydraulic motor with high torque and large diameter cylinder turn of the hydraulic oil cylinder propulsion.

Product Tech Data

XY-1 Rig Technical Information
Main technical parameters		Pump
Drilling depth(m)	100m	Type	Gear pumps
Hole diameter	110mm	Model	YBC-12/80
The final hole diameter	75mm	Rated pressure	8Mpa

Rod diameter	42-50mm	Flow	8ml/r
Borehole inclination	90°— 75°	Rated speed	1500r/min

Rig Dimensions	1640mm×1030mm×1440mm
(L×B×H)
Rig weight(Except the power machine	500kg	Motor and diesel
Gyrator		type	ZSⅡ00
vertical speed	142,285,570r/min	Rated Power	11KW
vertical stroke	450mm	Rated speed	2200r/min
vertical load up the maximum speed	3m/min	Electric motor
vertical load down the maximum speed	4m/min	type	Y160M-4
The maximum vertical force feed	15KN	Rated Power	11KW
The maximum vertical lifting force	25KN	Rated speed	1460r/min
		Pump
Winches		Type	Horizontal single-cylinder double-acting
The maximum lifting capacity ( a single rope speed )	10KN	The maximum displacement	99(77)L/min
Reel speed	55,110,220r/min	The maximum allowable pressure	1.2Mpa
Roll peripheral speed	0.42,0..84,1.68m/s	Working Pressure	0.7Mpa
Reel diameter	145mm	The number of strokes	120(96)min
Rope diameter	9.3mm	Liner diameter	80mm
Rope capacity	27m	Piston stroke	100mm
Brake diameter	230mm
Gate width	50mm

XY-1 Exploration Geological Drilling Rig Characteristics

(1) It has a hydraulic automatic feeding structure to improve the drilling efficiency and reduce the labor intensity of workers.

(2) The ball clamp clamping mechanism is used to replace the chuck, which can reverse the rod without stopping the machine, which is convenient, safe and reliable.

(3) It is equipped with a hole bottom pressure gauge to indicate the pressure, which is convenient to master the situation in the hole.

(4) The handle is centralized and easy to operate.

(5) The structure is compact. The drilling rig, water pump and diesel engine are installed on the same base, occupying a small area of the airport.

(6) Light weight and strong decomposability. The loading form is trailer type, crawler type and disassembly. It is suitable for working in plain or mountainous areas.

XY-1 Exploration Geological Drilling Rig Application

(1) The rig is suitable for general survey exploration, geophysical exploration, road and building exploration, blasting hole drilling and other drilling projects.

(2) According to different formations, bits such as alloy, composite and diamond can be selected for drilling.

(3) Grade 2-9 sandy clay and bedrock layer can be drilled.

(4) The rated drilling depth is 100m, and the maximum depth shall not exceed 120m. The rated opening diameter is 110m, the allowable maximum opening diameter is 130mm, and the final hole diameter is 75mm. The drilling depth is determined according to the formation conditions.
