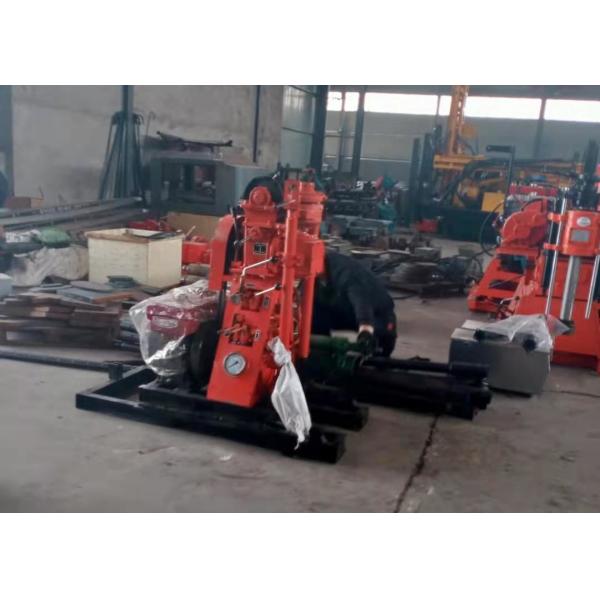

Portable Hydraulic Water Well Drilling Rig/Small Soil Borehole Drilling Machine

50 Portable Water Well Drilling Rig brief introduction

ST50 solves the problem that the drill pipe of traditional small hydraulic drill is short and needs to be lifted and lowered repeatedly during drilling. The crawler chassis is added to the machine, which reduces the user's transfer burden and improves the operation efficiency. The drill pipe coring tool is placed on the chassis, and the machine can be transferred by starting the machine. Meanwhile, the function of moving the machine is added. The length of the drill pipe reaches 2M and the height of the drill tower is 4.5m, The operation process is simplified, and there is no need to dismantle the bull head to change the rod, which improves the drilling speed.

50 Portable Water Well Drilling Rig parameter

Portable Water Well Drilling Rig Main Features

1. The crawler chassis walking function is added, which is convenient to move and reduce labor costs
1. It is equipped with oil pressure automatic feeding mechanism to improve drilling efficiency and reduce manual labor.
2. The ball clamping mechanism is used to replace the chuck, which can reverse the rod without stopping the machine. It is easy to operate, safe and reliable.
3. The handle is centralized and easy to operate.
4. Compact structure, stable base and small occupied area.
5. Light weight, strong decomposition, easy to move, suitable for plain or mountain work

Product introduction and application:

St-50 drilling rig is a small and portable geological exploration drilling rig developed by our factory.
1. This drilling rig is suitable for drilling projects such as water well drilling, general survey exploration, geophysical exploration, road and building exploration, and blasting holes.
2. According to the difference of the bottom layer, drills such as alloy, diamond and composite sheet can be used for drilling.
3. Sandy clay and rock layers of grade 2-9 can be drilled.

Jinzhou City Shitan Machinery Equipment CO. LTD. is a professional production and

processing company for core drilling rigs, crawler drilling rigs, various track chassis, various

types of mud pumps, various track transport vehicles, etc. It is one of the outstanding

manufacturers of similar products in North China. Strong technical force. The modern production

equipment and complete testing means are specialized in the development, manufacture and

marketing of drilling rigs.

To ensure the quality and stability of the machine, we use the most advanced production and testing

equipment, Made from high quality materials, with fashion and compact design, that keeps our drilling

rigs more efficiency and with low failure rate, more economic and durable, and with a high comprehensive

cost performance. Our water drilling rigs have received the real market validation as the majority of our

customer’s positive feedback.

The company's main products are rigs: XY-1, XY-1A, XY-1B, GK-180, GK-200, DPP-100 and other series

of drilling rigs: gearbox assemblies and gyro assemblies for various rigs, Winch assembly, reducer assembly,

pump assembly. Drilling tools: sedimentary pipe joints, casing joints, casing couplings, drill pipe joints, casing

core pipes, lifters, automatic drop hammers, earth borrowers, standard penetrations, forks, lock joints, alloy drill

bits Hundreds of drilling tools, such as steel sand drill bits, core pipe joints, drill pipe pliers, and casing pliers.

Jinzhou City Shitan Machinery Equipment CO. LTD. has a complete and scientific quality management

system. The integrity, strength and product quality of Jinzhou Stone Exploration Machinery Co., Ltd. have been

recognized by the industry. Welcome friends from all walks of life come to visit, guide and negotiate business!
