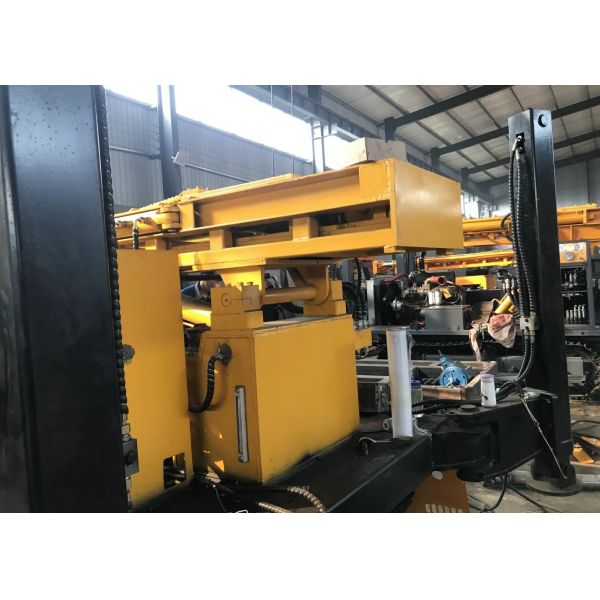

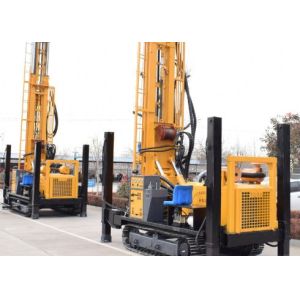

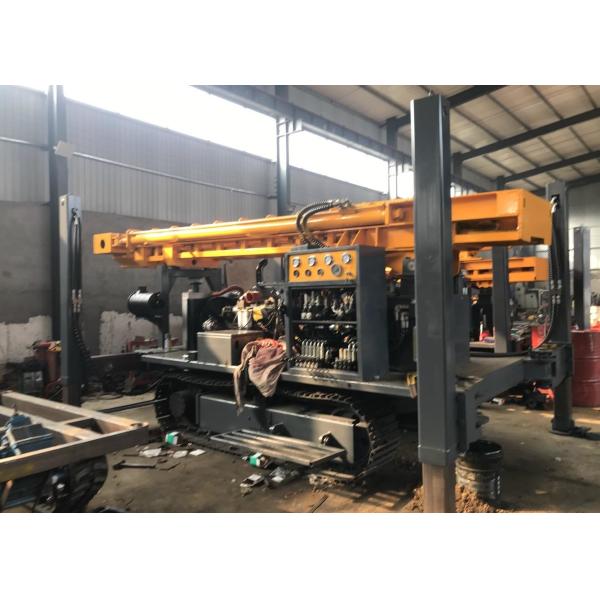

Mobile Rotary Drilling Rig ST 300 Meters Large Pneumatic Borewell Machine

ST 300 Meters Large Pneumatic Borewell Machine Product Descrption:

Drilling rig, hydraulic torque converter, automatic transmission, lever shift, forward and reverse switching is sensitive and convenient, transmission efficiency is twice as high as hydraulic transmission, power consumption is reduced by 35%, more efficient and energy-saving. The difficulties of air DTH hammer drilling in soil layer and low construction efficiency of rotary drilling machine in hard rock, gravel and cobble layer are solved.top hammer drill rigs are equipped with powerful hydraulic rock drills that offer high penetration rates, reliability, and excellent fuel economy.

ST 300 Meters Large Pneumatic Borewell Machine Main Parameter:

ST 300 Meters Large Pneumatic Borewell Machine Main Advantages:

1. The speed range of the drilling rig is 14-1030r / min, and the maximum output torque is 9500n. M.

2. The drilling rig adopts long travel speed doubling mechanism and mechanical power head with a stroke of 3500mm, which is used to improve drilling efficiency and reduce drilling plugging and burning accidents.

3. The drilling rig adopts double oil pumps for oil supply, single pump for drilling and two pumps for combined flow for lifting and tripping; Less power loss and short auxiliary time.

4. Crawler chassis is adopted, the stroke of outrigger cylinder is 1.5m, it can be loaded automatically, and it is convenient to move and transport.

5. The drilling machine is in mechanical operation. Some functional interfaces are reserved in the hydraulic system, which can be expanded according to the process requirements of different users.

ST 300 Meters Large Pneumatic Borewell Machine Operating Instructions:

During the working process of water well drilling rig, the pump is used for reverse circulation operation. Under the action of atmospheric pressure, the circulating fluid flows from the sedimentation tank to the bottom of the well through the return ditch along the annular gap of the well. At this time, the rotary table drives the drill pipe to drive the drill bit to rotate for drilling. The negative pressure established by the suction of the mud pump sucks the debris mud into the inner cavity of the drill pipe and discharges it into the sedimentation tank through the mud pump. The circulating fluid after sedimentation continues to flow into the well, The reverse circulation drilling work is formed.

Jinzhou City Shitan Machinery Equipment CO. LTD. is a professional production and

processing company for core drilling rigs, crawler drilling rigs, various track chassis, various

types of mud pumps, various track transport vehicles, etc. It is one of the outstanding

manufacturers of similar products in North China. Strong technical force. The modern production

equipment and complete testing means are specialized in the development, manufacture and

marketing of drilling rigs.

To ensure the quality and stability of the machine, we use the most advanced production and testing

equipment, Made from high quality materials, with fashion and compact design, that keeps our drilling

rigs more efficiency and with low failure rate, more economic and durable, and with a high comprehensive

cost performance. Our water drilling rigs have received the real market validation as the majority of our

customer’s positive feedback.

The company's main products are rigs: XY-1, XY-1A, XY-1B, GK-180, GK-200, DPP-100 and other series

of drilling rigs: gearbox assemblies and gyro assemblies for various rigs, Winch assembly, reducer assembly,

pump assembly. Drilling tools: sedimentary pipe joints, casing joints, casing couplings, drill pipe joints, casing

core pipes, lifters, automatic drop hammers, earth borrowers, standard penetrations, forks, lock joints, alloy drill

bits Hundreds of drilling tools, such as steel sand drill bits, core pipe joints, drill pipe pliers, and casing pliers.

Jinzhou City Shitan Machinery Equipment CO. LTD. has a complete and scientific quality management

system. The integrity, strength and product quality of Jinzhou Stone Exploration Machinery Co., Ltd. have been

recognized by the industry. Welcome friends from all walks of life come to visit, guide and negotiate business!
