Continuous Operation Tracked Drilling Rig with High Stability

Pneumatic Water Well Drilling Rig with Strong Drilling Ability and Flexible Steering

The pneumatic drilling rig operates by converting compressed air pressure energy into mechanical energy. Utilizing a pneumatic motor and impactor, it achieves both rotation and impact actions for effective rock breaking. The drilling process consists of three key stages: power transmission, action execution, and drilling operation.

Technical Specifications

Parameter	Value
Product Type	Crawler Mounted Drilling Rig
Drilling Hole Diameter	105-300 mm
Drilling Rod Length	3 m
Weight	5.5 MT
Rotary Torque	5900
Material	Rubber Track
Walking speed	2.5km/h
Lifting Force	18T
Maximum Rotational Speed	30/120r/min
Climbing degree	30
High leg travel	1.35m
Overall Dimensions	3.8m*1.8m*2.3m
Engine	Xidong:65KW

Power On Safety Control

• Gradually open the air compressor valve using a "small opening → gradual increase" method to prevent damage from sudden airflow
• After starting, idle for 1-2 minutes to check for smooth operation and abnormal noises
• Verify emergency stop button responsiveness before lowering drilling tool

Drilling Process Safety Regulations

• Begin with "low speed, light pressure" drilling (≤1/3 rated value) until 10-20cm depth is achieved
• Monitor pressure gauges and drilling rig vibration continuously during operation
• Immediately stop operation for any pressure drops, severe shaking, or abnormal noises
• Never touch rotating components, stand directly below the rig, or modify equipment during operation
• Always stop machine, cut gas supply, and clean threads before adding drill rods

Product Images

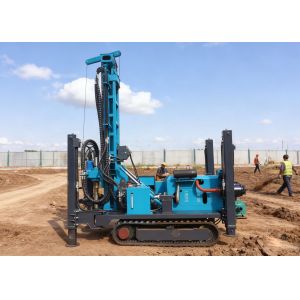

Front view of ST-200 drilling rig

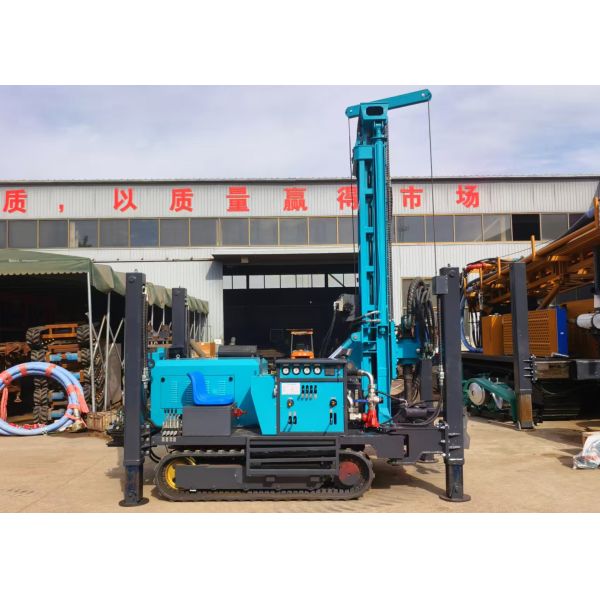

Side view of ST-200 drilling rig

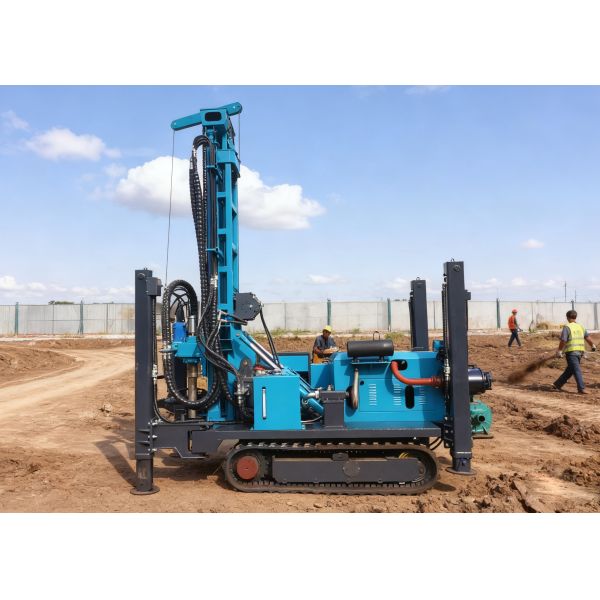

Operational view of drilling rig

Drilling mechanism close-up
